超速離心機

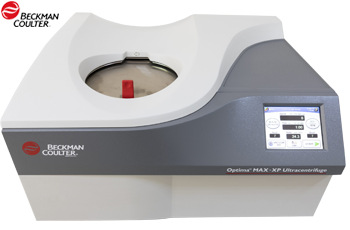

Optima MAX-XP臺式超速離心機
Beckman Optima MAX-XP臺式超高速離心機最高轉速達15000rpm，相對離心力超過 1000000xg，單管容量范圍175μL 至 32.4mL。適用于大離心力分離應用和病毒、細菌和線粒體等亞細胞成分及大生物分子肽、DNA、蛋白質的分離。
設備名稱：臺式超速離心機 Optima MAX-XP tabletop ultracentrifuge
制 造 商：美國貝克曼(Beckman Coulter)公司 產地：美國
品 牌：Beckman
型 號：Optima MAX-XP
超速離心管:見［基本耗材］ 商品報價:見［訂貨指南］
主要功能用途
Beckman Optima MAX-XP臺式超高速離心機最高轉速達15000rpm，相對離心力超過 1000000xg，可對單管容量范圍175μL 至 32.4mL樣品提供快速高效分離。Optima MAX-XP 超速離心機適用于大離心力分離應用和小顆粒（病毒、細菌和線粒體等亞細胞成分）及各種天然和合成大生物分子（肽、DNA、蛋白質）分離。
主要應用包括：
亞細胞顆粒(沉淀、速率區帶離心)
病毒(沉淀、速率區帶離心)
蛋白純化/分離(沉淀、速率區帶離心)
DNA(沉淀、CsCl等密度梯度離心)
RNA(CsCl沉淀、密度梯度離心)
脂蛋白(懸浮法密度梯度離心)
納米顆粒(沉淀、密度梯度離心)
性能特點

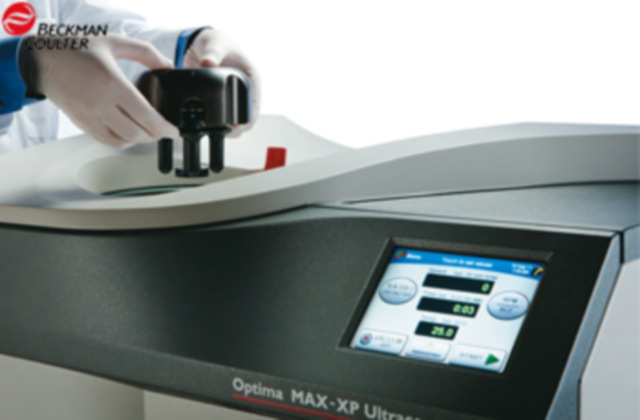

1. Optima MAX-XP臺式超速離心機人性化運行設計
新一代Optima MAX-XP臺式超速離心機，體型小巧，可置于實驗臺上或標準的生物安全柜內工作，噪音低于47dBA，與同類儀器比，運行時非常安靜，實現了室內靜音運行效果。
根據人體工效學設計的離心腔門，讓操作者僅用一個手指就可以輕松打開。

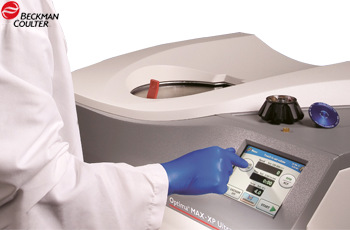

2. 設置運行界面友好
全彩 LCD 觸摸屏安裝的角度經優化，且重要功能鍵都在屏幕前方的中間布局，用戶界面直觀，便于觀察，并可兼容穿戴手套操作。系統可從中、英文任意選擇，可以設置個性化用戶圖標管理實驗室常用離心程序，還可設置運行結束的提示音的音量。
3. 功能多樣性的轉頭

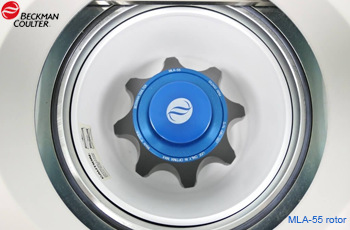

Optima MAX-XP臺式超速離心機支持TLA系列和MLA系列的定角轉頭、TLS和MLS系列水平轉頭、TLN和MLN系列近垂直轉頭。
單管樣品容量范圍覆蓋175μL 32.4mL樣品。
4. 實驗室生物安全保障功能
Optima MAX-XP不僅可以放置在生物安全柜內使用，還可安裝HEPA高效微粒隔膜隔離氣溶膠來提高生物安全性。
此外，Optima MAX-XP提供的程監測和控制軟件，可以從計算機，智能手機或平板電腦快速啟動，停止和監控實驗進程，便于在遠離儀器安裝房間遠程監控和操作該儀器。
5. 數據審計功能功能
Optima MAX-XP具有嚴格電子記錄保存的高等級軟件，包括密碼控制訪問和完整的審計跟蹤文檔功能。
密碼保護和電子簽名可幫助您維護監管鏈和合規性
6. 通過電子郵件接收診斷警報
主要技術規格
Optima MAX-XP臺式超速離心機的主要技術規格如下。
主機性能參數 | |
最高轉速 | 150000 rpm (MLA-150) |
最大相對離心力 | 1019000 xg (MLA-130) |
最大離心容量 | 6×32.4 mL (MLA-50) |
轉速控制精度 | ±50 rpm（1000 rpm以上可調轉速） |
操作界面 | 中文操作界面 |
驅動系統 | 真空密封驅動系統 |
制冷系統 | 固態冷卻，不含CFC制冷劑 |
溫控范圍 | 可設溫度范圍: 0 – 40℃（1℃增量） |
真空系統 | 脫水式真空系統 |
真空度 | 實時數值顯示 |
加速選擇(acceleration) | 10個加速特征 |
減速選擇(deceleration) | 11個減速特征，包括滑行 |
運行時長 | 99小時59分 |
樣品不平衡容許度 | ±10% |
數據輸出 | USB接口輸出 |
工作噪音 | <47dBA |
生物安全風險控制功能 | 可置于生物安全柜內工作，并可選配HEPA高效過濾器隔離氣溶膠 |
軟件技術規格 | |
操作系統 | 基于嵌入式 Windows 操作系統 |
操作顯示界面 | 彩色 LCD 觸摸屏 |
轉頭目錄 | 有 |
支持21 CFR Part 11 | 有 |
瞬時時離心功能 | 有 |
遠程監控軟件 | 有 |
儀器登陸控制功能 | 用戶身份驗證和密碼保護登錄，提高使用的安全性 |
安裝運行條件
Optima MAX-XP臺式超速離心機在海拔2km以內室內安裝使用
工作電源：220V/6A/50Hz
工作環境溫度：10 ～ 35℃
相對濕度范圍：<80%R.H.（無冷凝）
主機尺寸(D×W×H)：584×737×409mm 617×739×533mm
主機重量：105kg
組成配置
Optima MAX-XP超速離心機由主機、轉頭及轉頭輔助工具組成。
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
MAX-XP臺式超速離心機 | Bckman | 393315 | Each | Optima MAX-XP Tabletop Ultracentrifuge(200-240 VAC, 50Hz) Samples Volume 175μL to 32.4 mL Max speed 150000rpm/1000000×g | 詢價 詢價 |
MAX-XP生物安全型 臺式超速離心機 | Bckman | A47882 | Each | Optima MAX-XP Benchtop Ultracentrifuge BioSafe Package (200-240 VAC, 50Hz) Samples Volume 175μL to 32.4 mL Max speed 150000rpm/1000000×g | 詢價 詢價 |
角轉頭系列 | |||||
TLA-100角轉頭 | Beckman | 343837 | set | TLA-100 Fixed-Angle Rotor Maximum Speed：100000 rpm Number of Tubes：20×0.2mL k-Factor：7 | 詢價 詢價 |
TLA-120.1角轉頭 | Beckman | 357655 | set | TLA-120.1 Fixed-Angle Rotor Maximum Speed：120000 rpm Number of Tubes：14×0.5mL k-Factor：8.0 | 詢價 詢價 |
TLA-55角轉頭 | Beckman | 366725 | set | TLA-55 Fixed-Angle Rotor Maximum Speed：55000 rpm Number of Tubes：12×1.5mL k-Factor：66 | 詢價 詢價 |
TLA-120.2角轉頭 | Beckman | 357656 | set | TLA-120.2 Fixed-Angle Rotor Maximum Speed：120000 rpm Number of Tubes：10×2.0mL k-Factor：16 | 詢價 詢價 |
MLA-150角轉頭 | Beckman | 393490 | set | MLA-150 Fixed-Angle Rotor Maximum Speed：150000 rpm Number of Tubes：8×2.0mL k-Factor：10.4 | 詢價 詢價 |
MLA-130角轉頭 | Beckman | 367114 | set | MLA-130 Fixed-Angle Rotor Maximum Speed：130000 rpm Number of Tubes：10×2.0mL k-Factor：8.7 | 詢價 詢價 |
TLA-100.3角轉頭 | Beckman | 349490 | set | TLA-100.3 Fixed-Angle Rotor Maximum Speed：100000 rpm Number of Tubes：6×3.5mL k-Factor：14 | 詢價 詢價 |
TLA-110角轉頭 | Beckman | 366735 | set | TLA-110 Fixed-Angle Rotor Maximum Speed：110000 rpm Number of Tubes：8×5.1mL k-Factor：13 | 詢價 詢價 |
MLA-80角轉頭套件 | Beckman | 367096 | set | MLA-80 Fixed-Angle Rotor Maximum Speed：80000 rpm Number of Tubes：8×8.0 mL k-Factor：29 | 詢價 詢價 |
MLA-55角轉頭 | Beckman | A31459 | set | MLA-55 Fixed-Angle Rotor Package Maximum Speed：55000 rpm Number of Tubes：8×13.5mL k-Factor：53 | 詢價 詢價 |
MLA-50角轉頭 | Beckman | A91774 | each | MLA-50 Fixed-Angle Rotor Assembly Maximum Speed：50000 rpm Number of Tubes：6×32.4 mL k-Factor：92 | 詢價 詢價 |
近垂直轉頭 | |||||
TLN-120近垂直轉頭 | Beckman | 357683 | set | TLN-120 Near-Vertical Rotor Maximum Speed：120000 rpm Number of Tubes：8×1.2mL k-Factor：7 | 詢價 詢價 |
TLN-100近垂直轉頭 | Beckman | 357614 | each | TLN-100 Near-Vertical Tube Rotor Maximum Speed：100000 rpm Number of Tubes：8×3.9 mL k-Factor：14 | 詢價 詢價 |
MLN-80近垂直轉頭 | Beckman | 367100 | set | MLN-80 Near-Vertical Tube Rotor Maximum Speed：80000 rpm Number of Tubes：8×8.0 mL k-Factor：20 | 詢價 詢價 |
甩平轉頭 | |||||
TLS-55甩平轉頭 | Beckman | 346134 | set | TLS-55 Swinging-Bucket Rotor Package Maximum Speed：55000 rpm Number of Tubes：4×2.2mL k-Factor：50 | 詢價 詢價 |
MLS-50甩平轉頭 | Beckman | 367280 | set | MLS-50 Swinging-Bucket Rotor Package Maximum Speed：50000 rpm Number of Tubes：4×5.0 mL k-Factor：71 | 詢價 詢價 |
熱封器工作套裝 | Beckman | 358314 | set | Quick-Seal Cordless Tube Topper kit | 詢價 詢價 |
基本耗材
Optima MAX-XP臺式超速離心機運行基本耗材主要是配套超速離心管和配套管帽適配器、懸浮適配器。
名稱 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
TLA-100 Rotor | |||||
230μL厚壁開口管 | Beckman | 342303 | 100/pkg | 0.2mL Open Top Thickwall Cellulose Propionate Tube Nominal Capacity 230 μL Closure: Open-Top Thickwall Color: Transclucent For use in Ultracentrifuge Rotors: Type 42.2 Ti, TLA-100 | 詢價 詢價 |
TLA-120.1 Rotor | |||||
0.5mL厚壁開口管 | Beckman | 343776 | 100/pkg | 0.5mL Open-Top Thickwall Polycarbonate Tube Nominal Size: 34 x 8mm - 100Pk Compatible Ultracentrifuge Rotors: TLA-120.1 | 詢價 詢價 |
TLA-55 Rotor | |||||
1.5mL按蓋管 | Beckman | 357448 | 500/pkg | 1.5mLPolypropylene Tube with Snap-on Cap Nominal Size: 11 x 39mm - 500Pk color：Natural | 詢價 詢價 |
TLA-120.2 Rotor | |||||
1.5mL鐘頂熱封管 | Beckman | 344624 | 50/pkg | 1.5mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 11×25mm Compatible Ultracentrifuge Rotor SW 60 Ti Required Floating Tube Spacer: 344674 | 詢價 詢價 |
Φ11mm管帽適配器 | Beckman | 344636 | 6/pkg | 11mm Diameter Polyetherimide Tube Spacer Compatible Ultracentrifuge Rotors: TLA-120.2 適用于344624 | 詢價 詢價 |
TLA-100.3 Rotor | |||||
3.5mL鐘頂熱封管 | Beckman | 349621 | 50/pkg | 3.5mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 13×31.5mm - 50Pk Compatible Ultracentrifuge Rotors: Type 100 Ti, VTi 90 Required Spacer: 360270 | 詢價 詢價 |
Φ13mm 懸浮適配器 | Beckman | 355937 | 6/pkg | 13 mm Diameter Noryl Tube Spacer Quantity of Six Compatible Ultracentrifuge Rotor TLA-100.3 for 3.5mLQuick-Seal Polypropylene Tube 349621 | 詢價 詢價 |
3.5mL厚壁透明開口管 | Beckman | 349622 | 25/pkg | 3.5mL Open-Top Thickwall Polycarbonate Tube Nominal Size: 13×51mm Compatible Ultracentrifuge Rotors: SW 55 Ti, TLA-100.3 | 詢價 詢價 |
3.5mL厚壁開口管 | Beckman | 349623 | 25/pkg | 3.5mL Open-Top Thickwall Polypropylene Tube Nominal Size: 13×51mm Compatible Ultracentrifuge Rotors: SW 55 Ti, TLA-100.3 | 詢價 詢價 |
2mL鐘頂熱封管 | Beckman | 345829 | 50/pkg | 2mL Quick-Seal g-max Polypropylene Tube Nominal Size: 13×25mm - 50Pk Compatible Ultracentrifuge Rotors: Type 100 Ti, Type 50.4 Ti Required Spacer 360270 | 詢價 詢價 |
Φ13mm管浮動適配器 | Beckman | 360270 | 8/pkg | 13mm Diameter Noryl Floating Tube Spacer Quantity of Eight Compatible Rotors: Type 100 Ti, TLA-110, TLA-100.3 適用于345829, 349621, 363962, 363961, 362248, 363960 | 詢價 詢價 |
1.5mL按蓋管 | Beckman | 357448 | 500/pkg | 1.5mLPolypropylene Tube with Snap-on Cap Nominal Size: 11 x 39mm - 500Pk color：Natural | 詢價 詢價 |
Φ11mm管套適配器 | Beckman | 355919 | 6/pkg | 11mm Diameter Delrin Tube Adapter Quantity of Six Product No:355919 Compatible Ultracentrifuge Rotors: TLA-100.3 適用于Ultracentrifuge Tube 357448 | 詢價 詢價 |
TLA-110 Rotor | |||||
5.1mL鐘頂熱封管 | Beckman | 362248 | set | 5.1mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 13×51mm - 50Pk Compatible Ultracentrifuge Rotors: Type 100 Ti; Required Spacer 360270 TLA-110; Required Spacer 362307 | 詢價 詢價 |
Φ13mm 管帽適配器 | Beckman | 362307 | 8/pkg | 13mm Diameter Delrin Floating Tube Spacer Quantity of Eight Floating Spacers for Ultracentrifuge Rotor TLA-110 Required Spacer for Tubes: 5.1mLQuick-Seal Bell Top Tube 362448 6.8mLQuick-Seal Polypropylene Tube 363650 （適用于343776 362248） | 詢價 詢價 |
4.7mL指封管 | Beckman | 361621 | 56/pkg | 4.7mL OptiSeal Polypropylene Tube Nominal Size: 13×48mm - 56Pk Compatible Ultracentrifuge Rotors: Type 50.4 Ti, Required Ultem Spacer 361676 TLA-110, Required Caps/Spacer 361676 | 詢價 詢價 |
Φ13mm管帽適配器 | Beckman | 361676 | 2Pk | 13mm Diameter Ultem Tube Spacer Spacer Compatible Ultracentrifuge Rotors: Type 50.4Ti, TLA-110 適用于361621 | 詢價 詢價 |
3.5mL鐘頂熱封管 | Beckman | 349621 | 50/pkg | 3.5mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 13×31.5mm - 50Pk Compatible Ultracentrifuge Rotors: Type 100 Ti, VTi 90 Required Spacer: 360270 | 詢價 詢價 |
2mL鐘頂熱封管 | Beckman | 345829 | 50/pkg | 2mL Quick-Seal g-max Polypropylene Tube Nominal Size: 13×25mm - 50Pk Compatible Ultracentrifuge Rotors: Type 100 Ti, Type 50.4 Ti Required Spacer 360270 | 詢價 詢價 |
Φ13mm管浮動適配器 | Beckman | 360270 | 8/pkg | 13mm Diameter Noryl Floating Tube Spacer Quantity of Eight Compatible Rotors: Type 100 Ti, TLA-110, TLA-100.3 適用于: 345829, 349621, 363962, 363961, 362248, 363960 | 詢價 詢價 |
MLA-150 Rotor | |||||
1mL厚壁開口管 | Beckman | 343778 | 100/pkg | 1mLOpen-Top Thickwall Polycarbonate Tube Nominal Size: 11 x 34mm - 100Pk Compatible Ultracentrifuge Rotors: TLA-120.2, MLA-150 | 詢價 詢價 |
1mL厚壁開口管 | Beckman | 347287 | 100/pkg | 1mLOpen-Top Thickwall Polypropylene Tube Nominal Size: 11 x 34mm - 100Pk Compatible Ultracentrifuge Rotors: TLA-120.2, MLA-150 | 詢價 詢價 |
MLA-130 Rotor | |||||
2mL鐘型熱封管 | Beckman | 344625 | 50/pkg | 2mL, Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 11×32mm Compatible Ultracentrifuge Rotors: SW 60 Ti; Required floating spacer: 344674 | 詢價 詢價 |
1.5mL鐘頂熱封管 | Beckman | 344624 | 50/pkg | 1.5mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 11×25mm Compatible Ultracentrifuge Rotor SW 60 Ti Required Floating Tube Spacer: 344674 | 詢價 詢價 |
Φ11mm管帽適配器 | Beckman | 367310 | 1/pkg | 11 mm Diameter Polyetherimide Floating Tube Spacer used In Ultracentrifuge Rotor MLA-130 Required for Tubes: 344625 2.0mLQuick-Seal Polypropylene Tube 344624 1.5mLQuick-Seal Polypropylene Tube | 詢價 詢價 |
1mL厚壁開口管 | Beckman | 343778 | 100/pkg | 1mLOpen-Top Thickwall Polycarbonate Tube Nominal Size: 11 x 34mm - 100Pk Compatible Ultracentrifuge Rotors: TLA-120.2, MLA-150 | 詢價 詢價 |
1mL厚壁開口管 | Beckman | 347287 | 100/pkg | 1mLOpen-Top Thickwall Polypropylene Tube Nominal Size: 11 x 34mm - 100Pk Compatible Ultracentrifuge Rotors: TLA-120.2, MLA-150 | 詢價 詢價 |
MLA-80 Rotor | |||||
8mL鐘頂熱封管 | Beckman | 344621 | 50/pkg | 8mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 16×57mm - 50Pk For High Performance Rotor JS-24.15 Required Spacer 355575 Compatible Ultracentrifuges Rotors: NVT 65 | 詢價 詢價 |
6.3mL鐘頂熱封管 | Beckman | 345830 | 50/pkg | 6.3mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 16×44mm - 50Pk For JS-24.15,Required Spacer 355579 | 詢價 詢價 |
4.2mL鐘頂熱封管 | Beckman | 356562 | 50/pkg | 4.2mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 16×38mm - 50Pk Compatible Rotor JS-24.15, Required Spacer: 355579 Compatible Ultracentrifuge Rotor MLA-55 | 詢價 詢價 |
Φ16mm 管帽適配器 | Beckman | 367094 | 1/pkg | 16 mm Diameter Noryl Tube Spacer Spacer use in Ultracentrifuge Rotors MLA-80. Required for Tubes: 344621 8.0mLQuick-Seal Polypropylene Tube 345830 6.3mLQuick-Seal Polypropylene Tube 356562 4.2mLQuick-Seal Polypropylene Tube | 詢價 詢價 |
6.5mL厚壁開口管 | Beckman | 355646 | 25/pkg | 6.5mL Open-Top Thickwall Polypropylene Tube Nominal Size: 16 x 64mm - 25Pk Compatible Rotors: F1010, S0410 Compatible Ultracentrifuge Rotor MLA-80 | 詢價 詢價 |
6.5mL厚壁開口管 | Beckman | 355647 | 25/pkg | 6.5mL Open-Top Thickwall Polycarbonate Tube Nominal Size: 16 x 64mm - 25Pk Compatible Rotors: F1010; Required Rubber Pad 342602 S0410 | 詢價 詢價 |
MLA-55 Rotor | |||||
13.5mL熱封管工作套裝 | Beckman | 348179 | set | 13.5mL Quick-Seal Tube Kit includes: 2 boxes 342413 Polypropylene Tubes 2 boxes 344322 Ultra-Clear Tubes 12 Spacers 342695 1 each 348123 Tube Rack Spinkote Lubricant 306812 Vacuum Grease 335148 (Cordless Tube Topper Kit required) （適用于MLA-55, Type 90 Ti, Type 70.1 Ti） | 詢價 詢價 |
13.5mL超凈圓頂熱封管 | Beckman | 344322 | 50/pkg | 13.5mL Quick-Seal Round-Top Ultra-Clear Tube Nominal Size: 16×76mm - 50Pk Compatible Ultracentrifuge Rotors: Type 90 Ti, Type 70.1 Ti Required Red Aluminum Spacer 342695 | 詢價 詢價 |
13.5mL圓頂熱封管 | Beckman | 342413 | 50/pkg | Standard 13.5mL Quick-Seal Round-Top Polypropylene Tube Nominal Size: 16×76mm - 50Pk compatible Ultracentrifuge Rotors: Fixed Angle: Type 90 Ti, Type 70.1 Ti, MLA-55 Near Vertical: NVT 65 Vertical: VTi 65.1 | 詢價 詢價 |
13.5mL圓頂熱封管 | Beckman | C14306 | 48/pkg | 13.5mL Quick-Seal Round-Top Polypropylene Tube Nominal Size: 16×76mm - 48Pk Compatible Rotors: Type 90 Ti, Type 70.1 Ti, NVT 65, VTi 65.1, MLA-55 Sterile + Certified Free（無菌無酶） | 詢價 詢價 |
Φ16mm管帽適配器 | Beckman | 342695 | 1/pkg | 16mm Diameter Aluminum Tube Spacer Compatible Ultracentrifuge Rotors: Type 90 Ti, Type 70Ti, MLA-55 適用于342413, 344322, C14290 | 詢價 詢價 |
Φ16mm離心管架 | Beckman | 348123 | 1/pkg | Tube Rack (16.0mm Tubes) Compatible Tubes: Quick-Seal Ultra-Clear Ultracentrifuge Tubes (344322); Quick-Seal Polypropylene Tubes 344622). | 詢價 詢價 |
MLA-50 Rotor | |||||
32.4mL指封管 | Beckman | 361625 | 56/pkg | 32.4mL OptiSeal Polypropylene Tube Nominal Size: 26×77mm - 50Pk | 詢價 詢價 |
Φ25mm管帽適配器 | Beckman | 361669 | 2/pkg | 25mm Diameter Ultem Tube Spacer Compatible Ultracentrifuge Rotors: Type 70Ti, Type 50.2Ti 適用于361625 | 詢價 詢價 |
Φ25mm離心管架 | Beckman | 348124 | 1/pkg | Tube Rack For 25.4mm Diameter Tubes | 詢價 詢價 |
27mL g-Max管工作套裝 | Beckman | 357346 | 50/pkg | 27mLQuick-Seal g-Max Polypropylene Tube Kit 內含： 50個27mLg-Max快封管（343665） 12個管帽適配器（343448） 1個g-Max取管鑷子（878446） 1個取帽工具（338765） （適用于Type 70 Ti, Type 50.2 Ti, MLA-50） required tools. | 詢價 詢價 |
27mL鐘頂熱封管 | Beckman | 343665 | 50/pkg | 27mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 25×64mm - 50Pk For Rotors: JS-24.38, Required Spacer 355536 Compatible Ultracentrifuges Rotors: Type 70 Ti, VTi 50.1 | 詢價 詢價 |
Φ25mm浮動適配器 | Beckman | 343448 | 1/pkg | 25mm Diameter Noryl Tube Spacer Compatible Ultracentrifuge Rotors: Type 70 Ti, Type 50.2 Ti, VTi 50. For 343664,357343,343665,357346,344324,344323,357344 | 詢價 詢價 |
Φ25mm離心管架 | Beckman | 348124 | 1/pkg | Tube Rack For 25.4mm Diameter Tubes | 詢價 詢價 |
TLN-120 Rotor | |||||
1.2mL 圓頂快封管 | Beckman | 361082 | 50/pkg | 1.2 mL Quick-Seal Round-Top Polypropylene Tube Nominal Size: 8 x 35mm - 50Pk Product No:361082 For use in Ultracentrifuge Rotors: TLN-120 Required Cap/Spacer 361061 | 詢價 詢價 |
Φ8mm懸浮適配器 | Beckman | 361061 | 1/pkg | 8mm Diameter Aluminum Tube Caps/Spacers for use in Ultracentrifuge Rotors: TLN-120 for 1.2 mL Quick-Seal Polypropylene Tube 361082 | 詢價 詢價 |
TLN-100 Rotor | |||||
3.9mL圓頂快封管 | Beckman | 358980 | 50/pkg | 3.9mLQuick-Seal Round-Top Polypropylene Tube Nominal Size: 13 x 38mm - 50Pk For Use In Ultracentrifuge Rotors: TLN-100; Required Cap/Spacer 342883 | 詢價 詢價 |
Φ13mm管帽適配器 | Beckman | 342883 | 1/pkg | 13mm Diameter Aluminum Tube Spacer 適用于： 345829, 342412, 344075, 348621, 357325, 357326, 358980 | 詢價 詢價 |
3.3mL指封管 | Beckman | 361627 | 56/pkg | 3.3mL OptiSeal Polypropylene Tube Nominal Size: 13 x 33mm - 56Pk For use in Ultracentrifuge Rotors: SW 55 Ti,Required Floating Spacer 361678 TLN-100, Required Caps/Spacer 362198 MLS-50 | 詢價 詢價 |
Φ13mm管帽適配器 | Beckman | 362198 | 1/pkg | gold-anodized aluminum spacer newly redesigned spacers OptiSeal tube spacers recommended to replace the old spacers For use in Ultracentrifuge Rotors: VTi 90, VTi 80, VTi 65.2, VTi 65 NVT 90,NVT 65.2 TLN-100 適用于：361627,362185 | 詢價 詢價 |
MLN-80 rotor | |||||
8mL鐘頂熱封管 | Beckman | 344621 | 50/pkg | 8mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 16×57mm - 50Pk For High Performance Rotor JS-24.15 Required Spacer 355575 Compatible Ultracentrifuges Rotors: NVT 65 | 詢價 詢價 |
Φ16mm 懸浮適配器 | Beckman | 367101 | 1/pkg | 16 mm Diameter Aluminum Tube Cap Spacer Quantity of One Product No:367101 for use in Ultracentrifuge Rotors: MLN-80 Required Cap for 344621 8.0mLQuick-Seal Tube | 詢價 詢價 |
Φ16mm離心管架 | Beckman | 348123 | 1/pkg | Tube Rack (16.0mm Tubes) Compatible Tubes: Quick-Seal Ultra-Clear Ultracentrifuge Tubes (344322) Quick-Seal Polypropylene Tubes 344622). | 詢價 詢價 |
TLS-55 rotor | |||||
2.2mL薄壁超凈開口管 | Beckman | 347356 | 50/pkg | 2.2mLOpen-Top Thinwall Ultra-Clear Tube Nominal Size: 11 x 34mm - 50Pk For use in Ultracentrifuge Rotors: TLS-55 | 詢價 詢價 |
2.2mL薄壁開口管 | Beckman | 347357 | 50/pkg | 2.2mLOpen-Top Thinwall Polypropylene Tube Nominal Size: 11 x 34mm - 50Pk For use in Ultracentrifuge Rotors: TLS-55 | 詢價 詢價 |
2mL鐘型熱封管 | Beckman | 344625 | 50/pkg | 2mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 11×32mm Compatible Ultracentrifuge Rotors: SW 60 Ti; Required floating spacer: 344674 | 詢價 詢價 |
1.5mL鐘頂熱封管 | Beckman | 344624 | 50/pkg | 1.5mL Quick-Seal Bell-Top Polypropylene Tube Nominal Size: 11×25mm Compatible Ultracentrifuge Rotor SW 60 Ti Required Floating Tube Spacer: 344674 | 詢價 詢價 |
Φ11mm浮動適配器 | Beckman | 344674 | 1/pkg | 11mm Diameter Noryl Floating Tube Spacer Compatible with W 60Ti Swinging-Bucket Rotor adapter 358152 is required. 適用于344624, 344625, 357323, 357324, 358655, 358648 | 詢價 詢價 |
MLS-50 rotor | |||||
5mL薄壁開口管 | Beckman | 326819 | 50/pkg | 5mL Open-Top Thinwall Polypropylene Tube Nominal Size: 13×51mm Compatible with Ultracentrifuge Rotor SW 55 Ti,mLS-50 | 詢價 詢價 |
3.5mL厚壁透明開口管 | Beckman | 349622 | 25/pkg | 3.5mL Open-Top Thickwall Polycarbonate Tube Nominal Size: 13×51mm Compatible Ultracentrifuge Rotors: SW 55 Ti, TLA-100.3 | 詢價 詢價 |
與立式超速離心機比，Optima MAX-XP臺式超速離心機的核心優勢在于所配置的角轉頭處理0.2 - 0.5mL微量、1.5 - 3.5mL少量樣品時，轉速高、上樣及轉頭安裝操作比立式超離同類轉頭更簡便。
其TLA110（8×5.1mL; k Factor 13）角轉頭的分離性能甚至與Optima XPN 100、Optima XE-100系列立式離心機配置的Type 100 Ti（8×6.0 mL; k Factor 15）角轉頭相當。
而MLA-55（8×13.5mL; k Factor 56）則相當于Optima XPN、Optima XE系列立式超速離心機的Type 70.1 Ti（12×13.5 mL）、Type 90 Ti（8×13.5 mL）兩款轉頭在55000rpm工作轉速下的分離性能。
MLA-50（6×32.4mL; k Factor 92）則意在執行立式超速離心機的Type 70.1 Ti（12×13.5 mL）、Type 90 Ti（8×13.5 mL）兩款轉頭在50000rpm工作轉速下的分離功能。
Optima MAX-XP主要應用于細胞外囊泡、蛋白類和亞細胞組分分離。此外，還可用于兼顧納米粒子、脂質體和病毒類顆粒的分離（可參考《Optima MAX-XP臺式超速離心機是如何成為細胞外囊泡分離神器的？》）。
視分離對象不同，Optima MAX-XP可提供多種轉頭配置組合方案。
序號 | 品名 | 貨號 | 套裝配置描述 | 報價 |
1 | MAX-XP核酸應用套裝 | 393315-N | Beckman Optima MAX-XP tabletop ultracentrifuge MLN-80 Fixed-Angle Rotor（8×8.0mL；80000rpm) MLA-130 Fixed-Angle Rotor（10×2.0mL；130000 rpm） Quick-Seal Cordless Tube Topper kit | 詢價 詢價 |
2 | MAX-XP蛋白應用套裝 | 393315-P | Beckman Optima MAX-XP tabletop ultracentrifuge MLA-50 Fixed-Angle Rotor（6×32.4mL；50000rpm) MLA-55 Fixed-Angle Rotor（8×13.5m；55000rpm) Quick-Seal Cordless Tube Topper kit | 詢價 詢價 |
3 | MAX-XP脂質分離套裝 | 393315-L | Beckman Optima MAX-XP tabletop ultracentrifuge MLN-80 Near Vertical Tube Rotor（8×8mL, 80000 rpm) TLA-100 Fixed-Angle Rotor (20×0.2mL, 100000rpm) Quick-Seal Cordless Tube Topper kit | 詢價 詢價 |
4 | MAX-XP亞細胞組分應用套裝 | 393315-C | Beckman Optima MAX-XP tabletop ultracentrifuge MLA-130 Fixed-Angle Rotor（10×2.0mL，130000 rpm） MLA-50 Fixed-Angle Rotor（6×32.4mL；50000rpm) MLS-50 Swinging-Bucket Rotor（4×5.0 mL；50000 rpm） Quick-Seal Cordless Tube Topper kit | 詢價 詢價 |
（更多應用配置細節及優化方案請洽在線客服）
