Thermo多功能臺式離心機
Sorvall ST8R小型多用途低溫離心機
Thermo Scientific Sorvall ST8R小型多用途低溫高速離心機，可配十余種不同功能類型轉頭及適配器選項，可滿足PCR管、1.5mL、5/50/15mL錐形管、采血管和微孔板、血容比測試毛細管離心要求。
商品名稱：小型臺式高速冷凍離心機 多功能低溫高速離心機 Compact Centrifuge
制 造 商：美國賽默飛(Thermo Fisher)公司 產地：德國
品 牌：Thermo
型 號：Sorvall ST8R Sorvall ST8（常溫）
適配器見：【主要附件】 應用配置套裝見：【訂貨指南】
主要功能用途
Thermo Scientific Sorvall ST8R臺式低溫離心機，最高轉速16000rpm，可配置1.5 - 50mL高速角轉頭、PCR八聯管轉頭、微孔板轉頭、1.5mL - 145mL水平轉頭、血容比測試毛細管轉頭在內共14種功能類型轉頭，配合多種適配器，可離心50/15mL錐形管、5/7/10mL采血管、微孔板、微量管、毛細管等多樣的離心管， 滿足細胞生物學、微生物學、分子生物學及臨床應用中血液、組織勻漿、細胞樣品和培養菌體處理要求。
性能特點
Sorvall ST8R小型多用途低溫高速離心機，結構緊湊，引入多項轉頭創新設計，操作簡便，即可滿足常規實驗樣品處理，亦可用于生物安全風險樣品的離心。

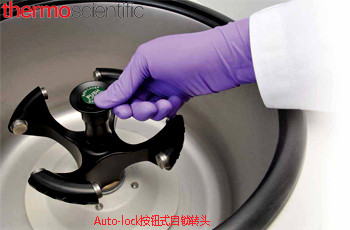

1）Auto-Lock III 轉頭自鎖功能
Auto-lock按鈕式轉頭自鎖系統，無需工具只需按下轉頭的Push按鈕可輕松安裝和拆卸
便于在不同應用之間切換時快速、靈活更換轉頭
有利于及時清潔離心腔污染和試管
2）ClickSeal防生物污染密封蓋
吊籃密封蓋通過壓蓋實現生物安全密封性，無需擰蓋和復雜搭扣
帶著手套也可以方便地用單手打開、閉合蓋子
ClickSeal防生物污染密封蓋，可高溫高壓滅菌處理，氣密性經過英國CAMR認證
主要技術規格
Sorvall ST 8R低溫高速離心機，可確保離心過程中樣品離心腔和轉頭溫度穩定維持在4℃，確保溫度敏感樣品的活性。針對無需嚴格控溫的實驗，提供了常溫離心的Sorvall ST8非冷凍型。
型號 | Sorvall ST8 | Sorvall ST8R | |
控制系統 | 微處理器 | ||
驅動系統 | 無碳刷直驅感應電機 | ||
轉頭鎖定機制 | Auto-Lock 轉頭自鎖 | ||
不平衡檢測系統 | 震動連續監測，帶轉頭重量校正 | ||
程序 | 4個快捷程序 | 3個快捷程序 + 96個程序 | |
瞬時離心功能 | 有 | ||
加/減速 | 2 ( 標準及soft 運行) | ||
最大定時范圍 | 99小時59分 + 連續運行 | ||
溫控范圍 | n/a | -10℃ ~ +40℃ | |
預冷功能 | n/a | 有, 快捷鍵 | |
制冷系統 | n/a | 無CFC 制冷系統 | |
水平轉頭 | |||
最大離心容量 | 4×145 mL（TX-150 轉頭） | ||
最高轉速 | 4500 rpm（TX-150 轉頭） | ||
最低轉速 | 300 rpm（TX-150 轉頭） | ||
最大RCF | 3260×g（TX-150 轉頭） | ||
角轉頭 | |||
最高轉速 | 16000 rpm（MicroClick 24 轉頭） | 17850 rpm（MicroClick 24 轉頭） | |
最低轉速 | 300 rpm（MicroClick 24 轉頭） | ||
最大 RCF | 24320×g（MicroClick 24 轉頭） | 30270×g（MicroClick 24 轉頭） | |
體系認證 | UL / CE / IVD / 生物安全認證 | ||
工作電源 | AC230 V/50-60Hz/310W | AC230 V/50-60Hz/750W | |
主機重量 | 35 kg | 74 kg | |
外觀尺寸尺寸（W×D×H） | 370×490×310 mm | 460×670×320mm | |
安裝運行條件
Sorvall ST8R離心機限于海拔高度2 km以下的室內使用
相對濕度范圍：15% ~ 85%以下（且無冷凝）
工作環境溫度：2℃ ~ +35℃

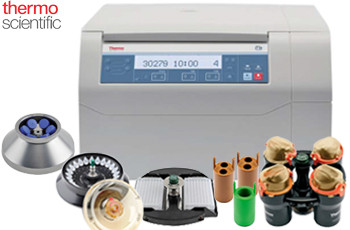

組成配置
Sorvall ST8R小型多功能低溫高速離心機工作配置包括主機、轉頭、適配器和配套離心管耗材。
Sorvall ST8R總計可配置14款轉頭，包括：
HIGHConic III（6×50mL; 9500rpm）、8x50 Sealed（8×50mL; 5600rpm）、CLINIConic（30×15mL）、MicroClick 18×5、Microliter 48 x 2（48×1.5/2.0mL）、MicroClick 30 x 2（30×1.5/2.0mL）和MicroClick 24 x 2（24×1.5/2.0mL）七款角轉頭；
適用的水平轉頭分為通用水平轉頭TX-150（24×1.5/2.0mL）、臨床水平轉頭TX-100S（8×15mL）、TX-100（15×15mL）和MT-12（12×1.5/2.0mL;13000rpm）微量高速水平轉頭四種類型；
針對分子生物學實驗，可選配M10 酶標板轉頭和8 x 8 PCR條板轉頭；
血細胞比容檢測（血容比檢測）。血容比檢測又稱紅細胞壓積（hematocrit，HCT）、紅細胞比積、紅細胞比容，是指一定容積全血中紅細胞所占的體積比例。通常用一根毛細管采集外周血樣離心，根據毛細管上的刻度讀取紅細胞占血細胞的百分比。比容值是貧血診斷和分類的指標、臨床糾正脫水及酸堿平衡失調時治療的參考指標。Sorvall ST8R提供了專用毛細采血管離心的紅細胞血容比轉頭。
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
ST8常溫高速離心機 | Thermo | 75007201C | each | Sorvall ST8 ventilated centrifuge (230V, 50/60Hz) | 詢價 |
ST8R冷凍高速離心機 | Thermo | 75007204 | each | Sorvall ST8R refrigerated centrifuge (230V, 50/60Hz) | 詢價 詢價 |

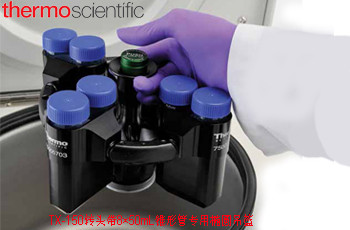

TX-150細胞離心套裝 | Thermo | 75005760 | set | TX-150 Cell Culture Rotor Package Includes: TX-150 Swinging Bucket Rotor 75005701 TX-150 Round Buckets Set 75005702 50mL Conical Tubes Adapters Set 75005736 | 詢價 詢價 |
TX-150高通量細胞離心套裝 | Thermo | 75005761 | set | TX-150 High Capacity Cell Culture Rotor Package Includes: TX-150 Swinging Bucket Rotor Includes: TX-150 Swing Bucket Rotor 75005701 Conical Buckets Set 75005703 15mL Conical Tubes Adaptera Set 75005808 | 詢價 詢價 |
TX-150采血管離心套裝 | Thermo | 75005762 | Set | TX-150 Clinical Rotor Rotor Package Includes: TX-150 Swing Bucket Rotor 75005701 Round Buckets 75005702 ClickSeal Biocontainment Lids 75005707 7mL Blood Collection Tube Adapter set 75005739 10mL Blood Collection Tube Adapter set 75003504 | 詢價 詢價 |
TX-150水平轉頭架 | Thermo | 75005701 | each | (order buckets separately) Nominal Rotor Capacity: 4×145mL Max Tube Dimensions (φ×L): 50×110 mm Max Speed: 4500rpm/Max RCF: 3260×g | 詢價 詢價 |
145mL圓形吊籃 | Thermo | 75005702 | 4pcs/pk | TX-150 145mL Round Buckets | 詢價 詢價 |
圓吊籃密封蓋 | Thermo | 75005707 | 4pcs/pk | ClickSeal Biocontainment Lids for Round Buckets | 詢價 詢價 |
密封蓋墊圈 | Thermo | 75005724 | 4pcs/pk | Replacement O-rings for Lids | 詢價 詢價 |
50mL錐形管橢圓吊籃 | Thermo | 75005703 | 4pcs/pk | High Capacity 50mL Conical Tube Buckets (unsealed, no adapter needed) | 詢價 詢價 |
15mL錐形管適配器 | Thermo | 75005808 | 2pcs/pk | 15mL Conical Tube Adapters Nominal Rotor Capacity: 8×15mL Max Tube Dimensions (φ×L): 17×123 mm | 詢價 詢價 |
HIGHConic III錐形管角轉頭 | Thermo | 75005709 | each | HIGHConic III Fixed Angle Rotor Nominal Rotor Capacity: 6×50mL Max Tube Dimensions (φ×L): 30×121 mm Max Speed: 9500rpm/Max RCF 12108×g | 詢價 詢價 |
密封轉頭蓋 | Thermo | 75005731 | each | Replacement lid for HIGHConic III rotor Sold individually | 詢價 |
轉頭蓋密封圈 | Thermo | 75003058 | 2pcs/pk | Replacement Sealing O-rings | 詢價 |
M10微孔板轉頭架 | Thermo | 75005706 | each | M10 Microplate Swinging Bucket Rotor Body Normimal Capacity: 4 Standard/2 Deepwell Microplates Max. Speed: 4400 rpm /Max. RCF 2576xg buckets 75005723 or 75005721 required | 詢價 詢價 |
M10標準吊籃 | Thermo | 75005723 | 2pcs/set | Unsealed Buckets for M10 rotor | 詢價 詢價 |
密封吊籃套件 | Thermo | 75005721 | 2pcs/set | Optional sealed buckets for M10 rotor | 詢價 詢價 |
1.5mL管高速水平轉頭 | Thermo | 75005600 | each | MT-12 Swinging Bucket Rotor Nominal Rotor Capacity: 12×2mL Max Tube Dimensions (φ×L): 11×50 mm Max Speed: 13000rprpm/Max RCF 16438×g | 詢價 詢價 |
TX-100S臨床水平轉頭 | Thermo | 75005704 | each | TX-100S Clinical Bucket Rotor with Sealed Carrier Nominal Rotor Capacity: 8×15mL Max Tube Dimensions (φ×L): 17×106 mm Max Speed: 4500rpm/Max RCF 3260×g | 詢價 詢價 |
TX-100臨床水平轉頭 | Thermo | 75005705 | each | TX-100 Clinical Swinging Bucket Rotor with Carriers Nominal Rotor Capacity: 16×15mL Max. Tube Dimensions (φ×L): 17×121 mm Max. Speed: 4500rpm/Max RCF 3260×g | 詢價 詢價 |
Sterilin尿樣管適配器 | Thermo | 75008817 | each | Sterilin Urine Tube Adapters TX-100/TX-100S Rotor Nominal 16/8×13mL Max Tube Dimensions (φ×L): 16×110 mm | 詢價 詢價 |
Sarstedt采血管適配器 | Thermo | 75008818 | each | Sarstedt Blood Tube Adapters TX-100/TX-100S Rotor Nominal 16/8×10mL Max Tube Dimensions (φ×L): 16×75 mm | 詢價 詢價 |
Hemogard/Vacutainer 適配器 | Thermo | 11172596 | each | 5/7mL BD Hemogard/Vacutainer Tube Adapters TX-100/TX-100S Rotor Nominal 16/8×5/7mL Max Tube Dimensions (φ×L): 13×110 mm | 詢價 詢價 |
3mL管適配器 | Thermo | 11172287 | each | 3mL Blood Collection Tube Adapters TX-100/TX-100S Rotor Nominal Rotor Capacity: 16/8×3mL Max Tube Dimensions (φ×L): 11×70 mm | 詢價 詢價 |
1.5/2mL管適配器 | Thermo | 11172288 | each | 1.5/2mL Microtube or Microtainer Tube Adapters TX-100/TX-100S Rotor Nominal 16/8×1.5/2mL Max Tube Dimensions (φ×L): 10×41 mm | 詢價 詢價 |
50mL尖底管密封角轉頭 | Thermo | 75003694 | each | 8×50mL Individually Sealed Rotor Nominal Rotor Capacity: 8×50mL Max Tube Dimensions (φ×L): 30×121 mm Max Speed: 5600rpm/Max RCF 5014×g | 詢價 詢價 |
15mL管通用角轉頭 | Thermo | 75003623 | each | CLINIConic Rotor Nominal Rotor Capacity: 30×15mL Max Tube Dimensions (φ×L): 16.5×131 mm Max Speed: 4400rpm/Max RCF 3030×g | 詢價 詢價 |
18×5mL角轉頭 | Thermo | ?75005765 | each | MicroClick 18 x 5 Rotor Nominal Rotor capacity:18×5mL Nominal Tube Dimensions: ?17×6 mm | 詢價 詢價 |
1.5/2mL微量管適配器 | Thermo | 75005756 | 2pcs/pk | 1.5/2.0 ml microtube adapter (set of 2) Nominal Rotor capacity:18×5mL Nominal Tube Dimensions: ?11×45 mm | 詢價 |
48×1.5mL角轉頭 | Thermo | 75003602 | each | Microliter 48 x 2mL Sealed Fixed Angle Rotor Maximum Speed: 15200 rpm/RCF 25314 xg | 詢價 詢價 |
30×1.5角轉頭 | Thermo | 75005719 | each | MicroClick 30×2 Rotor Nominal Rotor Capacity: 30×1.5/2mL Max Tube Dimensions (φ×L): 11×45 mm Max Speed: 14000rpm/Max RCF 21694×g | 詢價 詢價 |
24×1.5mL角轉頭 | Thermo | 75005715 | each | MicroClick 24×2 Rotor Nominal Rotor Capacity: 24×1.5/2mL Max Tube Dimensions (φ×L): 11×45 mm Max Speed: 17850rpm/Max RCF 30279×g | 詢價 詢價 |
8×8 PCR八聯管轉頭 | Thermo | 75005720 | each | 8×8 PCR Strip Rotor Rotor Capacity: 8×8 PCR strips Max Speed: 15000rpm/Max RCF 17860×g | 詢價 |
Hematocrit 血比容轉頭 | Thermo | 75005733 | each | Hematocrit Rotor Includes： Linear Scale，24 Capillaries Max Speed: 13300rpm/Max RCF 16810×g | 詢價 |
毛細離心管 | Thermo | 76000923 | 100pcs/pk | Capillaries tubes used in Hematocrit rotor | 詢價 |
基本耗材
Sorvall ST 8R離心機的常規耗材主要包括大容量離心瓶、離心管。
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
145mL離心瓶 | Thermo | 75007585 | 4pcs/pk | 145mL Centrifuge Bottles with Screw Cap for TX-150 Rotor Actual Capacity: 125 mL Closure Material: Polypropylene Material: Polypropylene Autoclavable | 詢價 |
訂貨指南
Sorvall ST 8R小型多功能低溫高速離心機，針對常規細胞培養實驗、分子生物學樣品及多學科復雜應用樣品離心要求，提供了多種應用配置套裝（Application Package）初始方案。
序號 | 品名 | 貨號 | 套裝配置描述 | 報價 |
ST8細胞離心高通量套裝 | 50147005C | set | Sorvall ST8 centrifuge High capacity Cell Culture Package includes： TX-150 Swinging Bucket Rotor Cross 75005701 TX-150 oval buckets set 75005703 2×15mL Conical Tube Adapter Set 75005737 | 詢價 |
ST8R細胞離心高通量套裝 | 50147009 | set | Sorvall ST8R centrifuge High capacity Cell Culture Package includes： TX-150 Swinging Bucket Rotor Cross 75005701 TX-150 oval buckets set 75005703 2×15mL Conical Tube Adapter Set 75005737 | 詢價 詢價 |
ST8細胞離心標準套裝 | 50140771C | set | Sorvall ST8 centrifuge Cell culture package includes： TX-150 Swinging Bucket Rotor Cross 75005701 TX-150 Round bucket Set 75005702 (set of 4) TX-150 ClickSeal biocontainment lids (set of 4) 1×50mL Conical Tube Adapter Set 75005736 2×15mL Conical Tube Adapter Set 75005737 | 詢價 |
ST8R細胞離心標準套裝 | 50144426 | set | Sorvall ST8R centrifuge Cell culture package includes： TX-150 Swinging Bucket Rotor Cross 75005701 TX-150 Round bucket Set 75005702 (set of 4) TX-150 ClickSeal biocontainment lids (set of 4) 1×50mL Conical Tube Adapter Set 75005736 2×15mL Conical Tube Adapter Set 75005737 | 詢價 詢價 |
ST8臨床應用套裝 | 50140786C | set | Sorvall ST8 centrifuge Routine Clinical Package includes： TX-150 Swinging Bucket Rotor Cross 75005701 TX-150 Round bucket Set 75005702 (set of 4) TX-150 ClickSeal biocontainment lids (set of 4) 6×5/7mL blood collection Tube Adapter Set 4×10mL blood collection Tube Adapter Set | 詢價 |
ST8R臨床應用套裝 | 50144430 | set | Sorvall ST8R centrifuge Routine Clinical Application Package includes： TX-150 Swinging Bucket Rotor Cross 75005701 TX-150 Round bucket Set 75005702 (set of 4) TX-150 ClickSeal biocontainment lids (set of 4) 6×5/7mL blood collection Tube Adapter Set 4×10mL blood collection Tube Adapter Set | 詢價 詢價 |
ST8分生應用套裝 | 50147008C | set | Sorvall ST8 centrifuge Molecular Biology Application Package includes： TX-150 Swinging Bucket Rotor Cross 75005701 TX-150 Round bucket Set 75005702 (set of 4) TX-150 ClickSeal biocontainment lids (set of 4) 1×50mL Conical Tube Adapter Set 75005736 2×15mL Conical Tube Adapter Set 75005737 MicroClick 24 x 2 Fixed Angle Microtube Rotor | 詢價 |
ST8R分生應用套裝 | 50147011 | set | Sorvall ST8R centrifuge Molecular Biology Application Package includes： TX-150 Swinging Bucket Rotor Cross 75005701 TX-150 Round bucket Set 75005702 (set of 4) TX-150 ClickSeal biocontainment lids (set of 4) 1×50mL Conical Tube Adapter Set 75005736 2×15mL Conical Tube Adapter Set 75005737 MicroClick 24 x 2 Fixed Angle Microtube Rotor | 詢價 詢價 |
ST8R通用實驗套裝 | 50144456 | set | Sorvall ST8R centrifuge Multi-discipline Application Package includes： TX-150 Swinging Bucket Rotor Cross 75005701 TX-150 Round bucket Set 75005702 (set of 4) TX-150 ClickSeal biocontainment lids (set of 4) 1×50mL Conical Tube Adapter Set 75005736 2×15mL Conical Tube Adapter Set 75005737 6×50mL HIGHConic III Fixed Angle Rotor M10 Swinging Bucket Rotor MicroClick 24 x 2 Fixed Angle Microtube Rotor | 詢價 詢價 |
-
