himac超離轉頭配套離心管

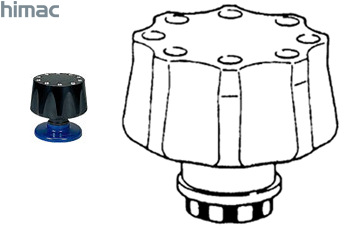

CP100NX超速離心機P90NT/P65NT2/P65NT近垂直轉頭
P90NT近垂直轉頭轉軸與離心孔固定夾角為10°，常用于質粒、DNA和RNA快速分離，適用于Himac CP100NX、CP90NX和CP80NX立式超速離心機。
商品名稱：近垂直轉頭 Neo angle rotor
制 造 商：Eppendorf Himac Technologies公司
品 牌：Himac
轉頭配套離心管及適配器報價見：［訂購信息］
詳細描述
P90NT近垂直轉頭鈦合金材質（Ti alloy），轉軸與離心孔固定夾角為10°，可用于質粒DNA和RNA的快速分離。適用于Himac CP100NX、CP90NX和CP80NX立式超速離心機。
1、技術規格
| Rotor | P90NT | P65NT2 | P65NT |
Max. speed | 90000 rpm | 65000 rpm | 65000 rpm |
Max. RCF | 646000×g | 431000×g | 402000×g |
Rotor nominal capacity | 8×5 mL | 18×5 mL | 10×12 mL |
K Factor at maximum speed | 10 | 15 | 23 |
Weight | 4.9 kg | 8.7 kg | 9.6 kg |
2、轉頭標準組件(Packing list)
Standard accessories | P90NT | P65NT2 | P65NT |
Handle | 5720411286 1x | ||
Cap Packing | 5720411277 16pcs | 5720411277 36pcs | 5720410169 20pcs |
Rotor Stand | 5720410232 1x | ||
Lubricate for Screw | 5720411230 1x | ||
Silicone Vacuum Grease | 5720850317 1x | ||
Tool Box (C) 1x | 5720850222 1x | ||
訂購信息
P90NT、P65NT2和P65NT近垂直轉頭標準配置中不含超速離心管。其中P90NT、P65NT2配套離心管可通用。離心管使用中須與配套蓋帽墊片組合使用。
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
P90NT近垂直轉頭 | Himac | 5720212201 | 1 set | P90NT Neo angle rotor with the RLM adapter 8×5mL; 90000 rpm/RCF 646000×g | 詢價 |
5PA熱封管套裝(A) | Himac | 5720411070 | 1 set | 5PA Seal Tube Kit A applicable to P100VT/P90VT/P90NT rotor including: 5720411008 5PA Seal Tube 2pkgs(100pcs) 5720411397 B2 Space Cap 8x 5720411232 Tube Setter 1x | 詢價 詢價 |
P65NT2近垂直轉頭 | Himac | 5720212203 | 1 set | P65NT2 Neo angle rotor with the RLM adapter 18×5mL; 65000 rpm/RCF 431000×g | 詢價 |
5PA熱封管套裝 (B) | Himac | 5720411071 | 1 set | 5PA Seal Tube Kit B applicable to applicable to P65VT2/P65NTs rotor including: 5720411008 5PA Seal Tube 2pkgs(100pcs) 5720411397 B2 Space Cap 18x 5720411232 Tube Setter 1x | 詢價 詢價 |
5PA熱封管 | Himac | 5720411008 | 50 pcs/pk | 5PA seal Tube Tube Dimensions (outer diameter × height): 1.3×5.3cm Net Sample Volume: 5.1 mL Material: PP Maximum Speed: 90000rpm/RCF 646000×g | 詢價 詢價 |
B2蓋帽墊片 | Himac | 5720411397 | 1 pc/pk | B2 Space Cap use with 5PA Seal Tube | 詢價 |
P65NT近垂直轉頭 | Himac | 5720212202 | 1 set | P65NT Neo angle rotor with the RLM adapter 10×12mL; 65000 rpm/RCF 402000×g | 詢價 |
12PA熱封管套裝 (C) | Himac | 5720411104 | 1 set | 12PA Seal Tube KIT (C) applicable to P65NT P65VT3 rotors including: 5720411019 12PA Seal Tube 2pkgs(100pcs) 5720411300 C4 Space Cap 10x 5720411232 Tube Setter 1x | 詢價 詢價 |
12PA熱封管 | Himac | 5720411019 | 50 pcs/pk | 12PA seal Tube Tube Dimensions (outer diameter × height): 1.6×7.8cm Net Sample Volume: 13.5 mL Material: PP Maximum Speed: 65000rpm/RCF 402000×g | 詢價 詢價 |
C4蓋帽墊片 | Himac | 5720411300 | 1 pc/pk | C4 Space Cap use with 12PA Seal Tube | 詢價 |
-
