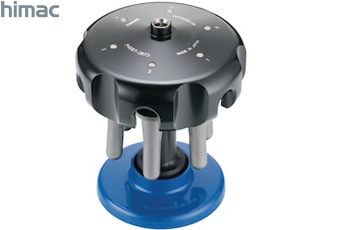

CP100NX/90NX/80NX超速離心機P40ST水平轉頭
P40ST水平轉頭，額定最高轉速40000rpm，工作容量6×13mL，適用于Himac CP100NX、CP90NX和CP80NX立式超速離心機。
商品名稱：P40ST水平轉頭 P40ST Swinging bucket rotor
制 造 商：Eppendorf Himac Technologies公司
品 牌：Himac
轉頭配套離心管及適配器報價見：［訂購信息］
詳細描述
P40ST水平轉頭，額定最高轉速40000rpm，工作容量6×13mL，適用于Himac CP100NX、CP90NX和CP80NX立式超速離心機。
1、技術規格
Max. speed: 40000 rpm
Max. RCF: 284000×g
Allowable density at maximum speed of the rotor: 1.2g/mL
K Factor at maximum speed of the rotor: 139
Nominal rotor capacity: 13 mL×6
Material of rotor: Ti alloy
Tube size: φ15×96 mm
Weight: 6.9 kg
2、轉頭標準組件(Packing list)
13PA Tube 5720411108 2pks(100pcs)
Tweezers 5720411243 1x
Cap Spanner 5720411242 1x
O-Ring 1AS18 5720410180 18x
Bucket Stand 5720411289 1x
Rotor Stand 5720410232 1x
Lubricate for Screw 5720411230 1x
Silicone Grease (Vacuum Grease) 5720850317 1x
Tool Box (C) 5720850222 1x
訂購信息
P40ST水平轉頭標準配置中含13PA Tube超速離心管，各配套離心管可在三個轉頭間通用。
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
P40ST水平轉頭套件 | Himac | 5720214002 | 1 set | P40ST Swinging bucket rotor with the RLM adapter | 詢價 |
吊籃密封墊圈 | Himac | 5720410180 | 12 pcs/pk | O-Ring 1AS18 for P32ZT P40ST rotors | 詢價 詢價 |
13PA薄壁開口管 | Himac | 5720411108 | 50 pcs/pk | 13PA Tube for P40ST rotor Tube Dimensions (outer diameter × height): 1.5×9.6cm Net Sample Volume: 10.9 mL Material: PP Maximum Speed: 40000rpm/RCF 284000×g | 詢價 詢價 |
13PET薄壁開口管 | Himac | 5720411107 | 50 pcs/pk | 13PET Tube for P40ST rotor Tube Dimensions (outer diameter × height): 1.5×9.6cm Net Sample Volume: 13 mL Material: PET Maximum Speed: 40000rpm/RCF 284000×g | 詢價 詢價 |
10PA熱封管 | Himac | 5720411088 | 50 pcs/pk | 10PA Seal Tube Tube Dimensions (outer diameter × height): 1.5×8.6cm Net Sample Volume: 11.2 mL Material: PP Maximum Speed: 40000rpm/RCF 284000×g | 詢價 詢價 |
D蓋帽墊片 | Himac | 5720411294 | 1 pc/pk | D Space Cap for 10PA Seal Tube Use in P40ST Swinging bucket rotor | 詢價 |
4PA薄壁開口管 | Himac | 5720411033 | 50 pcs/pk | 4PA Tube Tube Dimensions (outer diameter × height): 1.1×6.0cm Net Sample Volume: 4 mL Material: PP Maximum Speed: 40000rpm/RCF 131000×g | 詢價 詢價 |
4S13管套適配器 | Himac | 5720411193 | 6 pcs/pk | 4S13 Adaptor for 4PA Tube use in P40ST rotor Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
3PA薄壁開口管 | Himac | 5720411034 | 50 pcs/pk | 3PA Tube Tube Dimensions (outer diameter × height): 1.1×4.7cm Net Sample Volume: 3 mL Material: PP Maximum Speed: 40000rpm/RCF 120000×g | 詢價 詢價 |
3S13管套適配器 | Himac | 5720411192 | 6 pcs/pk | 3S13 Adaptor for 3PA Tube used in P40ST rotor Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
0.9PC厚壁開口管 | Himac | 5720411036 | 50 pcs/pk | 0.9PC Thick-walled Tube Tube Dimensions (outer diameter × height): 0.8×5.0cm Net Sample Volume: 0.9 mL Material: PC Maximum Speed: 50000rpm/RCF 189000×g | 詢價 詢價 |
2S13管套適配器 | Himac | 5720411191 | 6 pcs/pk | 2S13 Adaptor for 0.9PC thick-walled Tube Use with P40ST rotor Material: POM Number of tubes/adapter: 1 | 詢價 詢價 |
-
